ffmpeg crop video

The crop filter takes four numbers — output width, output height, and the (x, y) of the top-left corner of the crop window inside the input frame:

ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=640:480:320:120" \
  -c:v libx264 -c:a copy out.mp4

That carves a 640×480 region starting at pixel (320, 120) out of the 1280×720 source. The four positional arguments are equivalent to the named form crop=w=640:h=480:x=320:y=120. The official filter docs cover the full grammar.

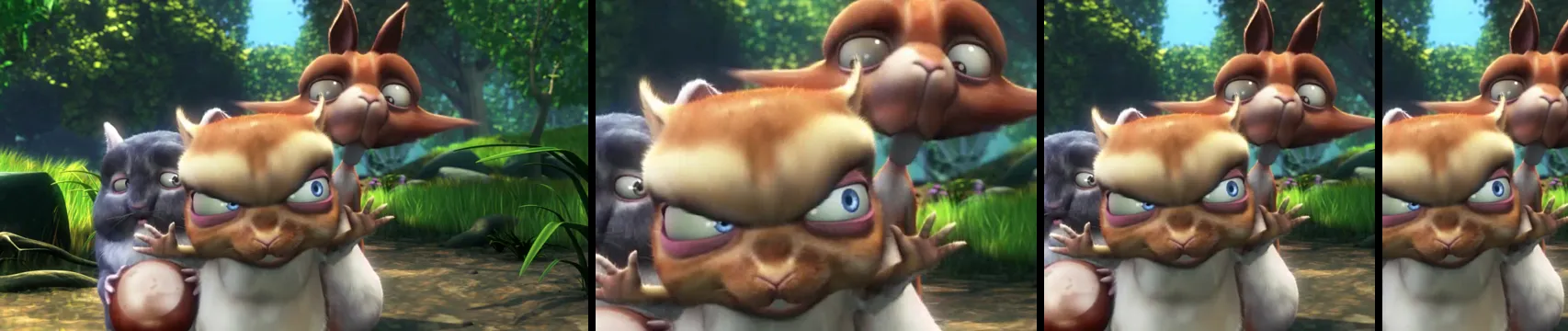

Left to right: the 1280×720 source, the 640×480 off-center crop the first command produces, a centered 720×720 square, and a 720×1280 vertical. The commands that produced them:

# 1280×720 source URL — used as -i in every command below
SRC=https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4

# 640×480 off-center crop
ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=640:480:320:120" \
  -c:v libx264 -c:a copy out_basic.mp4

# 720×720 centered square
ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=ih:ih" \
  -c:v libx264 -c:a copy out_square.mp4

# 720×1280 vertical 9:16
ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=ih*9/16:ih,scale=720:1280" \
  -c:v libx264 -c:a copy out_vertical.mp4

The defaults

If you omit x and y, ffmpeg centers the crop — x defaults to (in_w-out_w)/2 and y to (in_h-out_h)/2:

ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=in_w-200:in_h-100" \
  -c:v libx264 -c:a copy out.mp4

trims 100 px from each side and 50 from top and bottom.

Three shortcuts that fall out of the defaults:

• Trim N pixels from every side: crop=in_w-2*N:in_h-2*N
• Square 1:1: crop=ih:ih
• Vertical 9:16 from a horizontal source: crop=ih*9/16:ih (chain ,scale=720:1280 to export at 720p)

The crop expressions for w, h, x, y accept these variables:

• iw, ih — input width and height in pixels
• ow, oh — output (cropped) width and height
• sar — sample (pixel) aspect ratio of the input
• dar — display aspect ratio of the input, equal to (iw/ih) * sar
• n — current frame index, starting at 0
• t — current frame timestamp in seconds
• hsub, vsub — chroma subsampling factors of the input pixel format (e.g. 2 and 1 for yuv422p)

n and t are evaluated per frame, which is what makes animated crops possible.

Removing black bars with cropdetect

For letterboxed or pillarboxed source, cropdetect examines every frame ffmpeg feeds it and prints a recommended crop=... line per frame. It doesn’t crop — you paste the result into a second invocation. How much you analyze is up to you: cap the input with -t <seconds> (the example below uses -t 3 to keep it short).

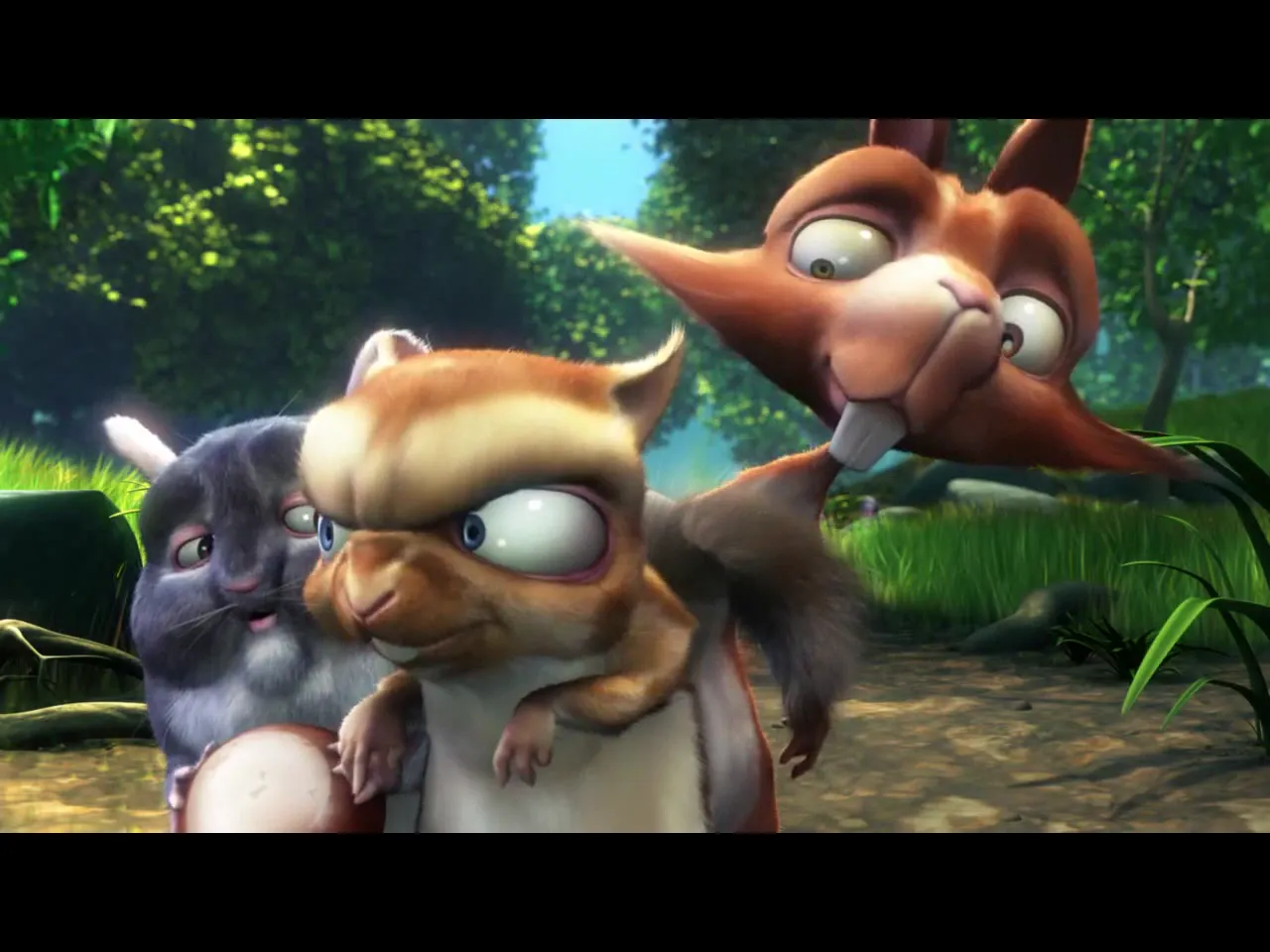

If you want a test clip to try this on, synthesize one by padding the 720p sample with black bars. The pad filter takes W:H:X:Y:color — it paints a W×H canvas of the given color and drops the input at offset (X, Y). So pad=1280:960:0:120:black makes a 1280×960 black canvas and places the 1280×720 input 120 px down from the top, leaving a 120-pixel black bar above and the same below:

ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "pad=1280:960:0:120:black" \
  -c:v libx264 -t 5 letterboxed.mp4

Now run cropdetect:

ffmpeg -ss 1 -i letterboxed.mp4 -t 3 -vf cropdetect=24:16:0 -f null -

The three positional arguments are limit:round:reset (the full option list, including mode, skip, and the motion-vector mode, is in the cropdetect filter docs):

• limit — per-pixel luma cutoff for what counts as bar. On 8-bit input (luma range 0–255), the default 24 treats any pixel ≤ 24 as part of the bar and anything brighter as active video. Bars are rarely a perfect zero (compression dirties them), so 24 gives a small headroom. Raise it (32, 48) for noisy bars; lower it for clean bars when you don’t want near-black scene content getting absorbed.
• round — divisibility constraint on the detected width and height. Default 16 keeps you safe across most codecs. Drop to 2 if you’re outputting to 4:2:2.
• reset — how cropdetect aggregates findings across frames. Internally it tracks a running maximum — the largest active (non-bar) rectangle seen so far. If one frame detects a 1280×700 region and the next detects 1280×720, the printed crop= line stays at the wider 1280×720 (the union). Default reset=0 never clears that running max, so the final printed line is the maximum across the whole input. Set it to a positive frame count when a recurring logo or station overlay keeps inflating the detected region, or when the clip switches aspect ratio partway through.

On the synthesized clip above, the last printed line is:

crop=1280:720:0:120

Same w:h:x:y order as the crop filter itself:

• 1280 — detected active width. The full input width, since there are no left/right bars.
• 720 — detected active height. The 1280×960 input has 240 px of black total (120 top + 120 bottom), so the active region is 960 − 240 = 720 tall.
• 0 — left edge of the active region inside the input frame (no left bar to skip).
• 120 — top edge of the active region (the height of the top bar).

That round-trips the pad exactly: the bars we added come straight back off.

The -ss 1 seek isn’t required for the synthesized clip above, but on real inputs it usually matters — intros, station logos, or fade-from-black at the start can fool the detector. Skip a second or two in.

Two footguns

Odd output dimensions on H.264. H.264 with yuv420p chroma subsampling requires even width and height. From the maintainer summary in ComfyUI-VideoHelperSuite #51: “It’s a multiple of 2 for any codec using yuv420p as the pix_fmt (h264) and multiple of 4 for av1.”

The failure mode is two different bugs depending on the exact parameter:

# exact=0 (default): silent rounding
ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=405:721" -c:v libx264 -pix_fmt yuv420p out.mp4
# → output is 404×720, not 405×721

# exact=1: hard failure
ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=405:721:exact=1" -c:v libx264 -pix_fmt yuv420p out.mp4
# → Invalid argument; Could not open encoder before EOF

If your dimensions come from arithmetic and you’re not sure they’re even, force them:

crop=trunc(iw/2)*2:trunc(ih/2)*2

Filtering and -c copy are mutually exclusive. Cropping rewrites pixel data, which forces a re-encode. Av1an issue #172 is the common shape: a user passes both -c copy and -vf "crop=...", and ffmpeg rejects the combination. Pair -vf "crop=..." with -c:v libx264 (or whichever encoder); audio can still ride through with -c:a copy.

Filter order matters

If you’re combining crop with scale, put crop first. The scaler then processes fewer pixels:

ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=ih*9/16:ih,scale=720:1280" \
  -c:v libx264 out.mp4

On a 1280×720 input that produces a 720×1280 vertical clip — the central 405×720 column scaled up to 720p portrait.

For a multi-segment variant — different crop window per time range, with a black-pad fallback when the window falls outside the frame — see the social-media crop recipe in Rendi’s ffmpeg cheatsheet.

Animated crops

The crop window can move. x, y, w, h are evaluated per frame and accept n (frame number) and t (seconds). The crop filter docs include a trembling-camera example built on this; the command below is the same idea slowed down so it’s watchable:

ffmpeg -i https://storage.rendi.dev/sample/big_buck_bunny_720p_5sec.mp4 \
  -vf "crop=in_w/2:in_h/2:(in_w-out_w)/2+((in_w-out_w)/2)*sin(t*1.0):(in_h-out_h)/2+((in_h-out_h)/2)*sin(t*1.3)" \
  -c:v libx264 -c:a copy animated.mp4

The crop window stays at half input size; its top-left corner traces a Lissajous figure as t advances, so the visible area slides around. Run against the 720p sample:

Since 2020 the same parameters are also runtime-tunable via sendcmd, which lets a controller change the crop region during a long encode without restarting it.

Aspect ratio and SAR

Crop recomputes the sample aspect ratio. If your input has non-square pixels and you want the cropped output to keep the original display aspect ratio, set keep_aspect=1. If you hit unexpected stretching after cropping a square-pixel source, append ,setsar=1 to the chain — that’s also a safe workaround for a corner case jamrial patched in 2024, an integer overflow in the SAR recalculation on extreme inputs.
